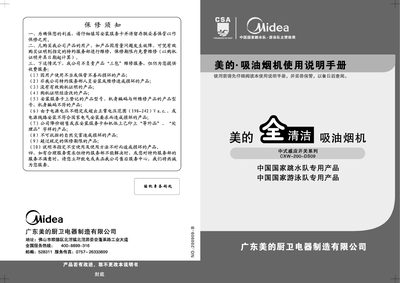

This manual covers all aspects of the Midea CXW-200-DS09 kitchen range hood, including safety precautions, warranty conditions, and detailed installation steps. It explains how to mount the hood, connect the exhaust pipe, and set the appropriate clearance above the stove.
Operation instructions describe the control panel functions, lighting, fan speed settings, and delay shutdown. Maintenance guidance shows how to clean the oil cup, filter, and safety net, as well as troubleshooting common issues and contacting service support. This manual is written in Chinese.
| Model | CXW-200-DS09 |
|---|---|
| Power Supply | 220V / 50Hz |
| Fan Count | Single fan |
| Motor Input Power | 200 W |
| Lighting | 12 V, 0.5 W × 2 lamps |
| Rated Power | 203 W |
| Exhaust Pipe Diameter | 160 mm |
| Air Flow | 16+1 m³/min |
| Static Pressure | 200 Pa |
| Maximum Pressure | 320 Pa |
| Noise Level | 68 dB(A) |
| Dimensions (W×D×H) | 750 × 525 × 425 mm |
| Net Weight | 17.5 kg |
Turn off the unit, unplug the power cord, and then replace the lamp.
