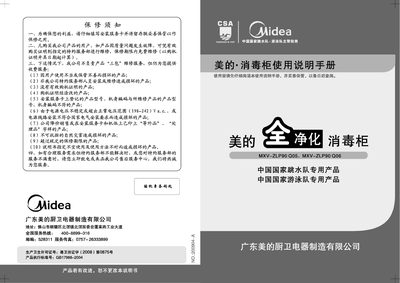

This manual covers warranty information, safety precautions, and cleaning procedures for the MXV-ZLP90 Q06 disinfection cabinet. Users are instructed to keep the warranty card, avoid improper use, and follow detailed cleaning guidelines that prohibit corrosive chemicals and direct water spraying.
The guide explains the control panel functions, operation modes (disinfection, drying, preservation), troubleshooting tips, and installation requirements for semi‑embedded mounting. Technical specifications such as power supply, capacity, ozone output, and dimensions are listed for reference. This manual is written in Chinese.
| Power Supply | 220V~ 50Hz |
|---|---|
| Rated Power | 300W |
| Rated Capacity | 90 L |
| Disinfection Time | 120 min |
| Drying Temperature | 55 °C ~ 85 °C |
| Ozone Output | 20 mg/ms < 40 mg/ms |
| Quartz Tube Life | 3000 h |
| Ozone UV Lamp Life | 1000 h |
| Ozone UV Lamp Wavelength | 185 nm / 254 nm |
| Ozone UV Lamp Power | 6 W |
| Rated Load Weight | 12 kg |
| Dimensions (L×W×H) | 595 mm × 430 mm × 630 mm |
Unplug the power plug, wipe the interior and exterior with a soft cloth or sponge using a neutral detergent, and avoid gasoline, polish, or corrosive cleaners; do not spray water directly onto the cabinet.
