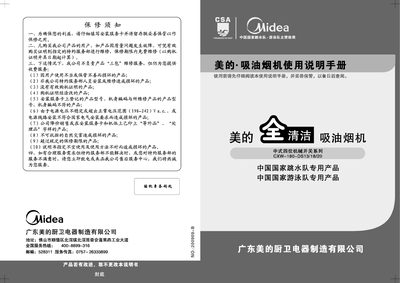

This manual covers safety precautions, warranty terms, and troubleshooting for the Midea CXW‑180 series range hood. It explains how to register the product, what conditions void the warranty, and how to contact Midea service centers.
The guide details installation requirements, operation steps, cleaning and maintenance procedures, and technical specifications such as power, airflow, and dimensions. It also includes wiring diagrams and part lists for the CXW‑180‑DS13, DS18, and DS20 models. This manual is written in Chinese.
| Model | CXW-180-DS13 / CXW-180-DS18 / CXW-180-DS20 |
|---|---|
| Input Voltage | 220 V / 50 Hz |
| Fan Count | Single fan |
| Motor Input Power | 180 W |
| Lighting | 2 × E27 25 W bulbs (220 V) |
| Rated Power | 230 W |
| Duct Diameter | 160 mm |
| Air Flow | 1422 m³/min |
| Air Pressure | 150 Pa |
| Maximum Static Pressure | 250 Pa |
| Dimensions (L×W×H) | 720 × 500 × 355 mm (DS13) / 720 × 545 × 407 mm (DS18) / 720 × 540 × 407 mm (DS20) |
| Net Weight | 14.5 kg (DS13) / 15 kg (DS18/DS20) |
Hold the outer edge of the oil cup, turn it counter‑clockwise until it releases from the bracket, remove it, clean, then reinstall by turning clockwise.
The bottom of the hood should be installed 650 mm to 750 mm above the stove surface.
Check that the power plug is properly inserted; if the motor still does not run, contact Midea’s service hotline for assistance.
