LMG7420PLFC-X-2 data sheet describes the features and specifications of this product.

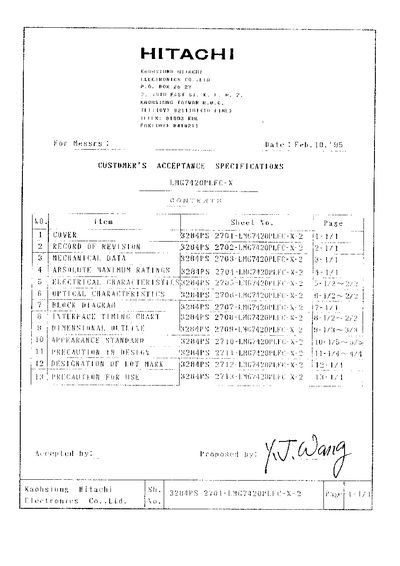

This handbook defines the acceptance specifications for the Hitachi LMG7420PLFC-X LCD module. It includes revision records, mechanical data, absolute maximum ratings, and detailed electrical and optical characteristics.
Key sections cover module dimensions, dot matrix, power supply requirements, backlight lamp parameters, ambient temperature limits, and handling precautions. The document is intended for customers and design engineers who need to verify that the module meets required performance and environmental standards.
| Module size (W × H × D) | 159.4 mm × 101.0 mm × 11.0 mm |
|---|---|
| Dot matrix | 240 × 128 |
| Input voltage range | -0.3 V – +0.3 V |
| Operating ambient temperature | 0 °C – 50 °C |
| Backlight lamp voltage | 360 V |
The module can operate from 0 °C up to 50 °C.
The module measures 159.4 mm wide, 101.0 mm high and 11.0 mm deep.
The backlight lamp requires a voltage of 360 V.
