The document provides information about the safety precautions, installation guide, control panel, instructions for using detergent, guidelines for detergent and laundry quantity, washing steps, and maintenance of the XQB65-JR washing machine.

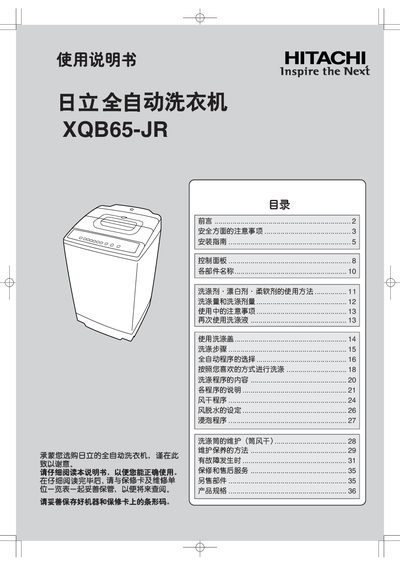

This manual begins with safety instructions and installation guidelines for the Hitachi XQB65-JR fully automatic washing machine. It explains how to place the appliance on a level floor, connect water and power supplies, and adjust the machine’s feet and base plate.
The later sections describe the control panel, the various washing, rinsing, spin, and wind‑dry programs, as well as maintenance, troubleshooting, specifications, and warranty information. This manual is written in Chinese.
| Standard washing capacity | 6.5 kg |
|---|---|
| Rated power (wash / spin) | 400 W / 300 W |
| Voltage / frequency | 220 V ~ 50 Hz |
| Dimensions (W × D × H) | 577 mm × 585 mm × 985 mm |
| Weight | ≈34 kg |
| Energy efficiency class | 3 |
| Energy consumption per cycle | 0.143 kWh |
| Water consumption per cycle | 155 L |
Place the machine on a hard, flat floor, keep it away from walls, and adjust the level using the adjustable feet as shown in the manual.
The standard washing capacity is 6.5 kg.
The wind‑dry program uses high‑speed airflow without heating, providing energy‑saving drying that avoids shrinkage of heat‑sensitive fabrics.
