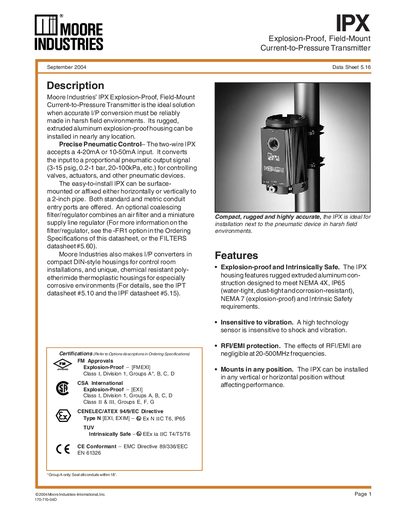

Moore Industries' IPX Explosion-Proof, Field-Mount Current-to-Pressure Transmitter is the ideal solution when accurate I/P conversion must be reliably made in harsh field environments. Its rugged, extruded aluminum explosion-proof housing can be installed in nearly any location. The IPX accepts a 4-20mA or 10-50mA input and converts it to a proportional pneumatic output signal (3-15 psig, 0.2-1 bar, 20-100kPa, etc.) for controlling valves, actuators, and other pneumatic devices. The IPX can be surface-mounted or affixed to a 2-inch pipe horizontally or vertically, and offers both standard and metric conduit entry ports.
The IPX transmitter from Moore Industries converts a 4‑20 mA or 10‑50 mA input into a proportional pneumatic output (3‑15 psig, 0.2‑1 bar, 20‑100 kPa) for use in harsh field environments. Its extruded aluminum housing meets NEMA 4X, IP65 and explosion‑proof standards, and can be mounted in any orientation.
The device offers less than 0.5 % of span accuracy, operates from –40 °C to +85 °C, and includes features such as vibration‑insensitive sensors, RFI/EMI protection up to 500 MHz, and optional coalescing filter/regulator options. Certifications include FM, CSA, CENELEC/ATEX, TUV and CE.
| Input range | 4‑20 mA or 10‑50 mA |
|---|---|
| Output range | 3‑15 psig (0.2‑1 bar, 20‑100 kPa) |
| Accuracy | Less than 0.5 % of span |
| Operating temperature | -40 °C to +85 °C |
| Weight | 1.8 kg (3 lb) |
| Air consumption | 0.1 scfm (0.18 kg/hr) |
| Supply pressure deviation effect | Maximum 0.3 %/1.4 psig change |
| RFI/EMI protection | Negligible at 20‑500 MHz |
The IPX accepts a 4‑20 mA or 10‑50 mA current input.
Its performance accuracy is less than 0.5 % of span.
