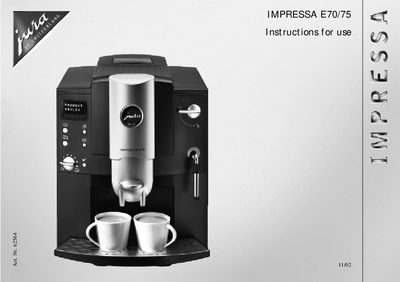

This document is the user manual for coffee machine Jura Impressa E70/75, mainly including the operation methods and safety instructions of the coffee machine.
This manual explains how to install, prepare, and operate the Jura Impressa E70/75 coffee machine. It covers safety precautions, electrical requirements, water‑tank filling, bean loading, grinder adjustment, and programming of water hardness and other settings.
Additional sections describe routine cleaning, descaling, troubleshooting, and technical specifications such as voltage, power consumption, and dimensions, helping owners keep the machine in optimal condition.
| Voltage | 230V AC |
|---|---|
| Power consumption | 1350 W |
| Fuse rating | 10 A |
| Standby energy consumption | approx. 3 Wh |
| Ready‑to‑make‑coffee energy consumption | approx. 17 Wh |
| Pump pressure | max. 15 bar |
| Water tank capacity | 1.9 litres |
| Bean container capacity | 200 g |
| Grounds container capacity | max. 16 port |
| Cable length | approx. 1.1 m |
| Weight | 8.3 kg |
| Dimensions (W × H × D) | 28 × 34.5 × 41.5 cm |
The machine is designed for a 10 A fuse; use a fuse that matches this rating.
The water tank holds 1.9 litres of water.
The pump can generate up to 15 bar of pressure.
