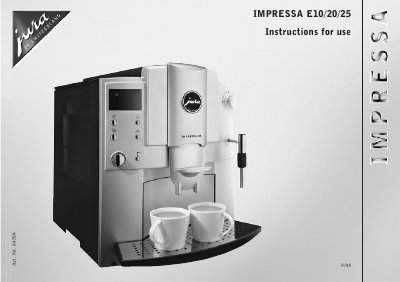

This manual introduces the features and usage of the JURA IMPRESSA E10/20/25 products, including safety information, preparing the machine, first use, adjusting water hardness, installing Claris plus filter cartridge, etc.
This manual provides safety information, preparation steps, and detailed operating procedures for the Jura Impressa E10/20/25 coffee machine. It explains how to check the supply voltage, fill the water and bean tanks, adjust the grinding gear, and set the water hardness before first use.
The guide also covers daily functions such as drawing one or two cups of coffee, using the steam/hot‑water jet, adjusting coffee strength, and performing rinsing, cleaning and de‑scaling cycles. Troubleshooting messages, filter replacement, and technical data are included to help keep the machine running smoothly.
| Voltage | 230 V AC |
|---|---|
| Power consumption | 1450 W |
| Fuse rating | 10 A |
| Standby energy consumption | ≈ 2.6 Wh |
| Ready‑for‑draw‑off energy consumption | ≈ 11 Wh |
| Pump pressure (max) | 15 bar |
| Water tank capacity | 1.9 L |
| Bean tank capacity | 200 g |
| Coffee grounds container capacity | 16 portions |
| Cable length | ≈ 1.1 m |
| Weight | 8.6 kg |
| Dimensions (W × H × D) | 28 × 34.5 × 41.5 cm |
Refill the water tank with fresh, cold water, reinstall it, and the display will indicate that the tank is filled.
