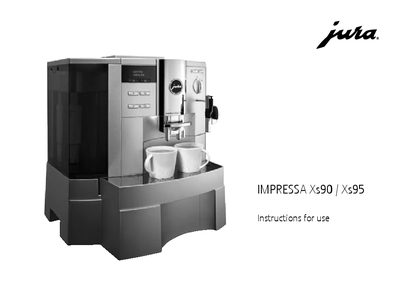

Instructions for use of IMPRESSA Xs90 / Xs95, which introduces the various components and functions of the coffee machine, as well as safety information and instructions for use.
This manual explains how to install, program, and use the Jura Impressa Xs90/Xs95 coffee machine safely. It covers safety warnings, power connection, filling the water and bean tanks, adjusting the grinding gear, and operating the various coffee functions.
Additional sections describe how to adjust water hardness, use the filter cartridge, perform rinsing, frothing, cleaning, decalcifying, and access technical data such as voltage, power consumption, and dimensions.
| Voltage | 230 V AC |
|---|---|
| Pump pressure (static max.) | 15 bar |
| Water tank capacity | 5.7 litres |
| Coffee grounds bin capacity | max. 40 portions |
| Cable length | approx. 1.1 m |
| Dimensions (W×H×D) | 41×47×39 cm |
Only use fresh, cold water, rinse the tank, fill it, and reinstall it correctly.
Turn the Rotary Switch to the required position while the grinding gear is running; smaller dots give a finer grind, larger dots a coarser grind.
Open the programming door, use the Rotary Switch to select the desired hardness (default 16°dH) and confirm with the switch.
Press the power switch (27) on the machine to turn it off, especially when not using it for an extended period.
