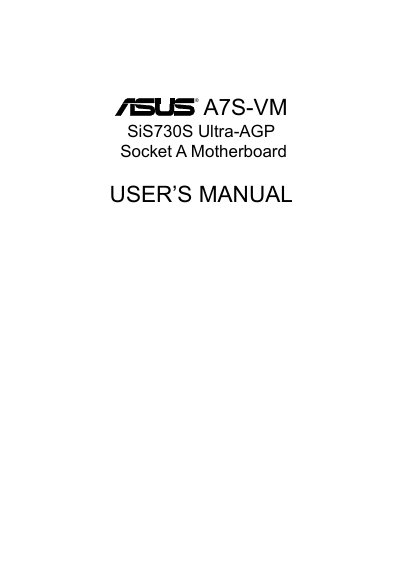

ASUS A7S-VM Motherboard User Manual

This is a user manual for the ASUS A7S-VM motherboard. It introduces the features and usage of the motherboard.

Brand: ASUS
Category: Board
Document type: User Manual
Language: English
Pages: 90
File format: PDF
File size: 3.1 MB
Published: 06 April, 2012
Updated: 01 October, 2023
MD5 checksum: A6C8F1C9DE3E3EA2507324AAB8469147
PDF: ASUS A7S-VM Motherboard User Manual PDF

About this manual

This manual covers the ASUS A7S-VM motherboard, detailing its features, hardware setup procedures, BIOS configuration steps, and included software utilities. It also includes an item checklist, safety notices, and contact information for technical support.

Technical specifications such as supported processors, chipset details, memory capacity, and I/O options are listed, along with FCC and Canadian compliance statements and troubleshooting guidance.

What's inside

Introduction
Features
Hardware Setup
BIOS Setup
Software Setup
Software Reference
Appendix

Specifications

Supported Processors	Socket A AMD Athlon/Duron 533 MHz‑1.2 GHz
Chipset	i8730S single chip with Ultra‑AGP
Memory Support	Up to 1 GB PC133/100 SDRAM via two DIMM sockets
IDE Controller	PCI Bus Master IDE with UltraDMA/100, /66, /33
LAN (optional)	RealTek RTL8100 10/100 BASE‑TX Ethernet

Frequently asked questions

What FCC compliance class does the ASUS A7S-VM meet?

The device complies with FCC Rules Part 15 as a Class B digital device.

Which processors are supported by the A7S‑VM motherboard?

It supports Socket A‑based AMD Athlon and Duron processors ranging from 533 MHz up to 1.2 GHz.
