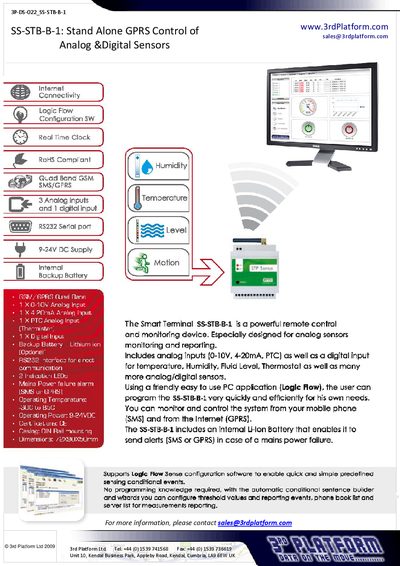

This document introduces the SS-STB-B-1 product from 3rd Platform Ltd. It is a standalone GPRS control module that can be used to control analog and digital sensors.
The SS‑STB‑B‑1 is a stand‑alone GPRS‑enabled controller designed for remote monitoring of analog and digital sensors such as temperature, humidity, fluid level and thermostat signals. It provides three analog inputs (0‑10 V, 4‑20 mA, PTC) and four digital inputs, a RS‑232 serial port, and two indication LEDs, all housed in a DIN‑rail‑mountable case.
Configuration is performed with a PC application (Logic Flow) that allows users to set thresholds, alarms, phone‑book and server lists without programming knowledge. The device can send alerts via SMS or GPRS on mains power failure and supports internet connectivity for remote monitoring from mobile phones or web interfaces.
| Analog inputs | 3 analog inputs (0‑10 V, 4‑20 mA, PTC) |
|---|---|
| Digital inputs | 4 digital inputs |
| Serial interface | RS‑232 |
| Operating power | 9‑24 V DC |
| Backup battery | Lithium battery (optional) |
| Operating temperature | -20 °C to 85 °C |
| Dimensions | 72 mm × 80 mm × 50 mm (DIN‑rail mounting) |
| GSM/GPRS | Quad‑band GSM/GPRS |
| CE certification | CE |
| Indication LEDs | 2 LEDs |
It can be monitored and controlled from a mobile phone via SMS and from the Internet via GPRS.
The device operates on a 9 V to 24 V DC power supply.
Yes, it includes an optional internal lithium backup battery that can send alerts on power failure.
