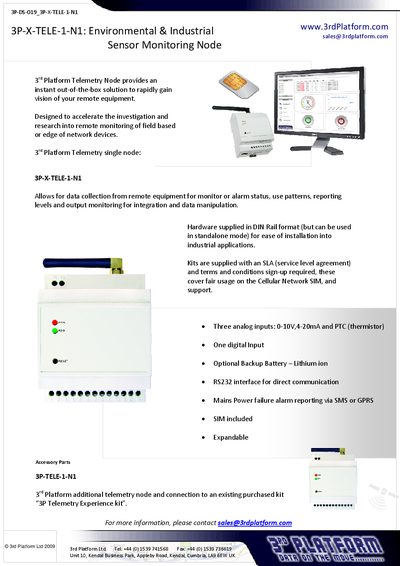

3P-X-TELE-1-N1 is an environmental and industrial sensor monitoring node that provides an instant out-of-the-box solution to rapidly gain vision of your remote equipment. The node features three analog inputs (0-10V, 4-20mA, and PTC), one digital input, optional backup lithium-ion battery, RS232 interface, mains power failure alarm reporting via SMS or GPRS, SIM card, and expandability. It allows for data collection from remote equipment for monitor or alarm status, use patterns, reporting levels, and output monitoring for integration and data manipulation.
The 3P-X-TELE-1-N1 is an environmental and industrial sensor monitoring node that enables data collection from remote equipment for status monitoring, alarm reporting, and pattern analysis. It is designed for rapid deployment in field‑based or edge‑network devices.
The hardware is supplied in a DIN‑rail format (also usable standalone) and includes three analog inputs (0‑10 V, 4‑20 mA, PTC thermistor), one digital input, an RS232 communication port, optional lithium‑ion backup battery, and built‑in SIM for SMS/GPRS alerts. A service‑level agreement and optional accessories are available; contact [email protected] for more information.
| Analog inputs | 0‑10 V, 4‑20 mA, PTC (thermistor) |
|---|---|
| Digital inputs | One digital input |
| Backup battery | Optional lithium‑ion battery |
| Communication port | RS232 interface |
| Power‑failure alarm | SMS or GPRS reporting |
| SIM card | Included |
| Expandability | Expandable |
It supports three analog inputs: 0‑10 V, 4‑20 mA and a PTC thermistor.
The node can send a power‑failure alarm via SMS or GPRS.
Yes, a SIM card is included with the node.
Yes, the hardware is supplied in DIN‑rail format but can also be used standalone.
