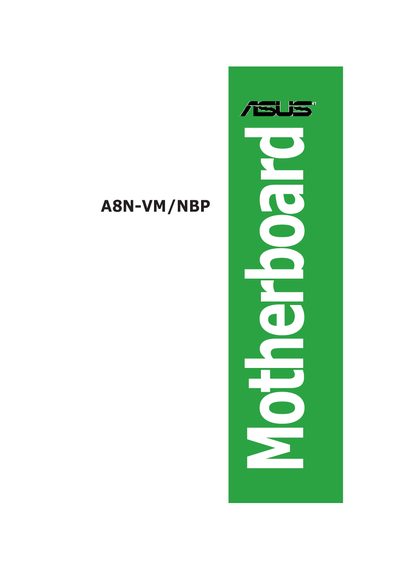

A8N-VM/NBP Motherboard User Manual
This manual provides an overview of the ASUS A8N-VM/NBP motherboard, including its layout, connectors, and key components. It details the chipset, memory architecture, expansion slots, graphics, audio, storage, and other integrated features.
The document also covers BIOS configuration, safety precautions, FCC compliance, and step‑by‑step procedures for installing and configuring hardware, as well as instructions for saving or discarding BIOS changes.
| Chipset (Northbridge) | NVIDIA GeForce 6150B GPU |
|---|---|
| Chipset (Southbridge) | NVIDIA nForce 430 MCP |
| Front Side Bus | 2000/1600 MT/s |
| Memory Architecture | Dual‑channel DDR, up to 4 GB |
| DIMM Slots | 4 × 184‑pin, up to 4 GB DDR |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| Graphics | Integrated NVIDIA GeForce 6150B, DVI‑D and RGB outputs |
| Audio | SoundMAX ADI AD1986A 5.1‑channel CODEC |
| IEEE 1394 Ports | 2 × IEEE 1394a |
The warranty is void if the product is repaired, modified, or altered without ASUS written permission, or if the serial number is defaced or missing.
Select the “Exit & Save Changes” option, confirm the prompt, and the changes are written to the CMOS RAM.
Disconnect all power cables from the system before connecting or disconnecting signal cables or adding/removing devices.
