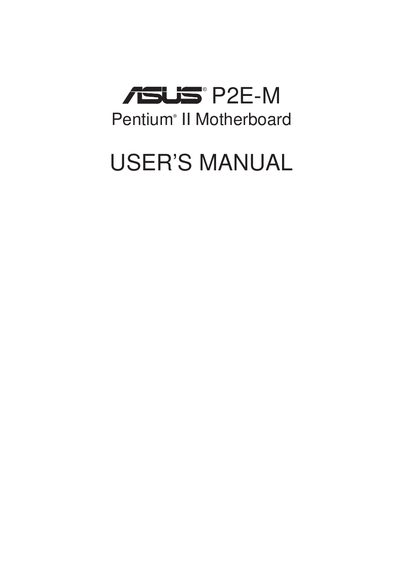

This document is the user manual for ASUS P2E-M Pentium ® II motherboard, describing the features and characteristics of the product.
This manual covers the ASUS P2E-M motherboard, a compact board designed for Intel Pentium II and Celeron processors. It details the board’s features, such as the Intel 440EX AGPset, dual DIMM memory slots, ISA and PCI expansion, and optional Wake‑on‑LAN support.
The guide walks users through hardware installation, BIOS configuration, and the included support utilities, including the DMI configuration tool and LAN card driver. FCC and Canadian compliance information is also provided.
| Supported CPUs | Intel Pentium II (233‑333 MHz) and Celeron (266 MHz and faster) |
|---|---|
| AGP Set | Intel 440EX AGPset |
| Memory Capacity | Two DIMM sockets, up to 256 MB total, 168‑pin 3.3 V SDRAM/EDO |
| Expansion Slots | Two 16‑bit ISA slots, two 32‑bit PCI slots |
| Wake‑on‑LAN | Supported via optional ASUS PCI‑L101 Fast Ethernet card |
| BIOS Features | Flash EEPROM BIOS with enhanced ACPI and anti‑boot virus protection |
It supports Intel Pentium II processors from 233 MHz to 333 MHz and Celeron processors of 266 MHz and faster.
The board has two DIMM sockets that can accommodate up to 256 MB of 168‑pin 3.3 V SDRAM/EDO memory.
It provides two 16‑bit ISA slots and two 32‑bit PCI slots for expansion cards.
Yes, Wake‑on‑LAN is supported through the optional ASUS PCI‑L101 Fast Ethernet card.
