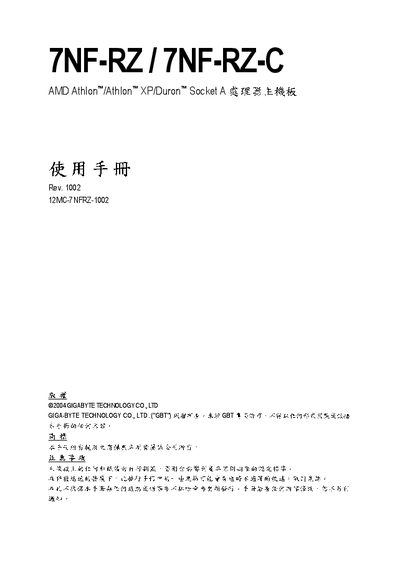

This document is the user manual for Gigabyte 7NF-RZ motherboard, which introduces the features and usage of the motherboard.
This manual covers the complete installation process for the Gigabyte 7NF‑RZ series motherboard, including safety precautions, hardware mounting, connector wiring, and component handling. Detailed BIOS setup instructions are provided, allowing users to adjust system frequencies, load preset profiles, and configure passwords.
The document also lists the board’s technical specifications such as supported CPUs, memory types, expansion slots, and peripheral interfaces. Compliance and support information for Gigabyte’s global service network are included at the end of the guide. This manual is written in Chinese.
| Supported CPUs | AMD Athlon, Athlon XP, Duron (Socket A) |
|---|---|
| Maximum CPU Frequency | Up to 1.4 GHz |
| Front‑Side Bus | 400 MHz |
| Chipset | NVIDIA nForce 2 |
| Maximum Memory Capacity | 3 GB DDR |
| PCI Slots | 5 PCI slots |
| IDE Interfaces | 4 IDE ports (UDMA 33 / ATA 66 / ATA 100 / ATA 133) |
| USB Ports | 6 USB 2.0/1.1 ports |
| Audio Codec | Realtek LC655 codec |
| LAN Controller | Realtek RTL8201 10/100 Mbps |
| SPDIF | Input and output ports |
The board supports AMD Athlon, Athlon XP and Duron processors for Socket A, up to a maximum frequency of 1.4 GHz.
The 7NF‑RZ provides six USB ports that support both USB 2.0 and USB 1.1 standards.
Turn off and unplug the computer power, avoid static discharge, and remove any stickers from the board before mounting.
