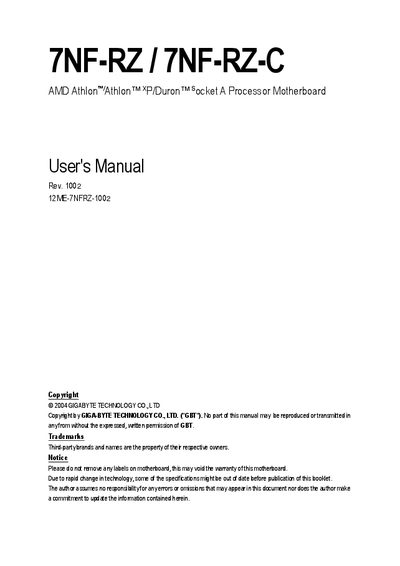

7NF-RZ / 7NF-RZ-C is a AMD Athlon™/Athlon™ XP/Duron™ Socket A Processor Motherboard motherboard produced by GIGA-BYTE TECHNOLOGY CO., LTD.
This manual provides step‑by‑step instructions for installing the Gigabyte 7NF‑RZ/7NF‑RZ‑C motherboard, handling precautions, and configuring the BIOS. It also lists the hardware features, supported processors, memory types, and peripheral connections.
Additional sections cover driver installation, troubleshooting, and contact information for worldwide technical support.
| CPU Socket | Socket A for AMD Athlon, Athlon XP, Duron |
|---|---|
| Maximum CPU frequency | Supports 1.4 GHz and faster |
| Chipset | NVIDIA nForce2 SPP (Northbridge) / nForce2 MCP (Southbridge) |
| AGP slot | 1 AGP slot, 8X/4X (1.5 V) mode |
| PCI slots | 5 PCI slots, 33 MHz, PCI 2.2 compliant |
| IDE connections | 2 IDE connectors (Ultra DMA33/ATA66/ATA100/ATA133), up to 4 devices |
| USB ports | 6 USB 2.0/1.1 ports (2 rear, 4 front via cable) |
| Onboard LAN | Realtek RTL8201 10/100 Mbit Ethernet |
It supports AMD Athlon, Athlon XP and Duron processors for Socket A, with front‑side bus speeds from 200 MHz up to 400 MHz.
The board provides six USB ports: two on the rear panel and four front ports accessed via a cable.
