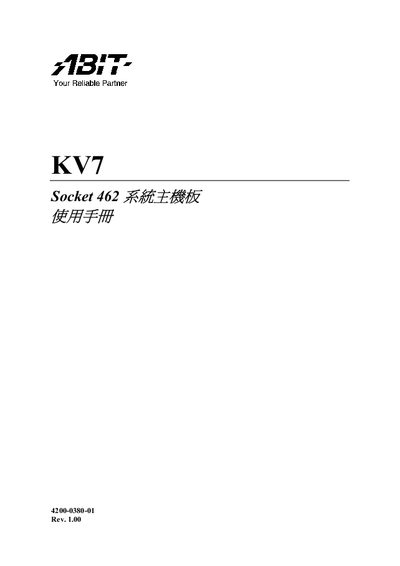

KV7 Socket 462 System Motherboard User Manual, introduces the motherboard's features, specifications, configuration diagram, as well as hardware settings and BIOS settings.
This manual introduces the ABIT KV7 motherboard, detailing its supported CPUs, chipset features, and key specifications. It includes a layout diagram of the board and describes each connector and slot.
Installation procedures cover mounting the board, installing the CPU and heatsink, connecting power and data cables, and configuring BIOS options such as power management and advanced chipset settings. The document also provides troubleshooting tips and RMA service information. This manual is written in Chinese.
| Chipset | VIA KT600 and VT8237 |
|---|---|
| Graphics Slot | AGP 4X |
| Serial ATA | Serial ATA 150 RAID |
| Ethernet Controller | 10/100 M PCI Ethernet |
| Audio Codec | AC‑97 CODEC with 24‑bit SPDIF output |
| Standby Power Requirement | 5 V standby must supply at least 720 mA |
The board includes two USB connectors.
The 5 V standby line must be able to deliver at least 720 mA.
A 10/100 M PCI Ethernet controller is built in.
