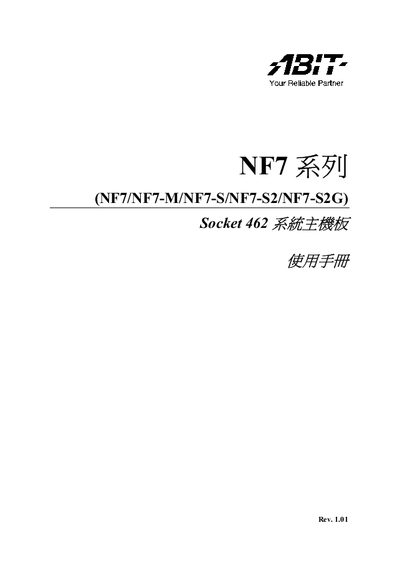

ABIT NF7 series (NF7/NF7-M/NF7-S/NF7-S2/NF7-S2G)Socket 462 system main-board Manual

NF7 Series mainboard user manual, introduces the features, specifications, installation, hardware settings and BIOS settings of the mainboard.

Brand: ABIT
Category: Other Computer Accessories
Document type: User Manual
Language: Japanese
Pages: 96
File format: PDF
File size: 4.7 MB
Published: 25 November, 2011
Updated: 30 September, 2023
MD5 checksum: E2CBB5BCBC46719FF18C34F6E928A0A4
PDF: ABIT NF7 series (NF7/NF7-M/NF7-S/NF7-S2/NF7-S2G)Socket 462 system main-board Manual PDF

About this manual

This manual provides detailed instructions for installing and configuring the ABIT NF7 series motherboards (NF7, NF7‑M, NF7‑S, NF7‑S2, NF7‑S2G). It includes safety notices, connector layouts, and step‑by‑step procedures for mounting the board, attaching the CPU, memory, and peripherals.

The document also describes BIOS options, advanced features, and supported hardware such as CPUs, memory types, audio, LAN, AGP, SATA, and IEEE‑1394 interfaces. A contact list for ABIT regional offices and a link to download updated manuals are included. This manual is written in Japanese.

What's inside

Introduction
Installation
BIOS Settings
Advanced BIOS Features
Integrated Peripherals
Power Management
PNP/PCI Configuration
Hardware Monitoring
Connector Layout
Safety and Warranty

Specifications

AGP Slots	Supports AGP 4X and AGP 8X modes

Frequently asked questions

Where can I download the latest version of this manual?

The latest manual can be downloaded from ABIT’s website at http://www.abit.com.tw/.
