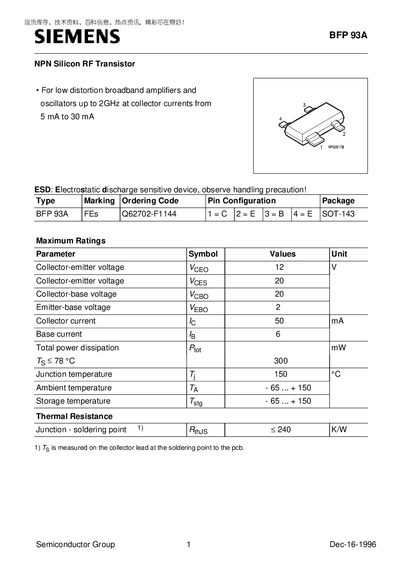

BFP 93A is a NPN Silicon RF Transistor supplied by Dinghao Electronics, which is suitable for low distortion broadband amplifiers and oscillators up to 2GHz at collector currents from 5 mA to 30 mA
The BFP 93A is an N‑type silicon RF transistor designed for low‑distortion broadband amplifiers and oscillators up to several gigahertz. It is intended for collector currents from 5 mA to 30 mA and includes handling precautions for electrostatic discharge.
The document lists maximum ratings such as collector‑emitter voltage and current, thermal limits, and detailed AC and DC characteristics. It also provides a complete Gummel‑Poon SPICE model and package equivalent circuit for simulation purposes.
| Collector‑emitter voltage (VCEO) | 12 V |
|---|---|
| Collector current (Ic) | 50 mA |
| Junction temperature (Tj) | 150 °C |
| Maximum operating frequency | 6 GHz |
The maximum collector‑emitter voltage is 12 V.
The transistor can handle up to 50 mA of collector current.
Yes, a complete Gummel‑Poon SPICE model is listed in the SPICE Parameters section.
