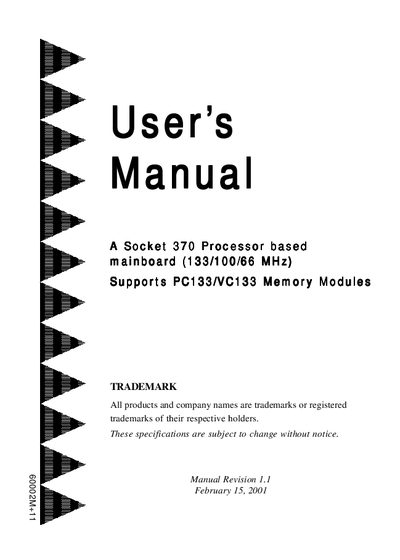

Socket 370 Mainboard User Manual

This document describes a mainboard based on Socket 370 processor, supporting PC133/VCM133 memory modules, with various features and functions.

Brand: Socket
Category: Motherboard
Document type: User Manual
Language: English
Pages: 63
File format: PDF
File size: 2.6 MB
Published: 05 April, 2012
Updated: 28 September, 2023
Model: Socket 370
MD5 checksum: 3BE5032B4ADA5EE29167AB9AD4F3E910
PDF: Socket 370 Mainboard User Manual PDF

About this manual

This manual provides detailed information for a Socket 370 processor‑based mainboard, including an introduction to the board's Micro ATX form factor, component checklist, and system block diagram. It describes the I/O back panel layout, power‑on/off remote feature, and the Soft Off function that can be controlled by the operating system.

The document also covers step‑by‑step installation procedures such as CPU insertion, jumper settings, memory configuration, and BIOS setup. Appendices contain a quick guide for Symantec Ghost utilities and additional reference material.

What's inside

Introduction
Features
Installation
CPU Insertion
Jumper Settings
System Memory Configuration
Device Connectors
BIOS Setup
Power Management Setup
Appendix

Specifications

CPU socket	Socket 370
Supported CPU speeds	133 MHz / 100 MHz / 66 MHz
Supported memory	PC133 / VC133 modules
Form factor	Micro ATX
Power connector	20‑pin ATX connector

Frequently asked questions

How can the system be turned off?

The system can be turned off using the front‑panel Power On/Off button or the Soft Off function controlled by the operating system.

What type of power connector does the board use?

The board uses a single 20‑pin ATX power connector.
