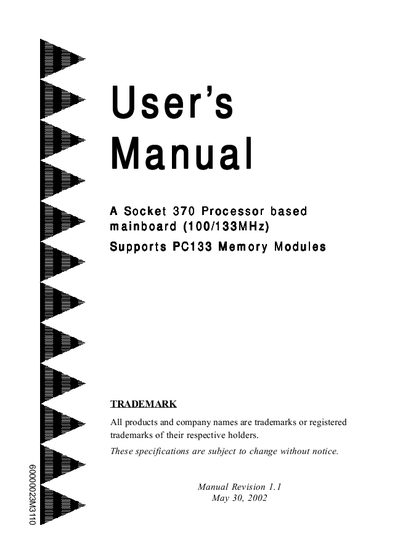

Socket 370 Mainboard User Manual

This is a user manual for a motherboard, which includes the features and characteristics of the motherboard and the installation instructions.

Brand: Socket
Category: Motherboard
Document type: User Manual
Language: English
Pages: 82
File format: PDF
File size: 6.5 MB
Published: 05 April, 2012
Updated: 30 September, 2023
Model: Socket 370
MD5 checksum: D958FA4AB6273F1B1A5D4D5085716B43
PDF: Socket 370 Mainboard User Manual PDF

About this manual

This manual describes a mainboard built for Socket 370 processors operating at 100 MHz or 133 MHz. It supports PC133 memory modules and follows the Micro ATX form factor, allowing use in ATX 2.01 or later cases.

The document includes sections on component checklists, I/O shield connection, power‑on/off remote control, BIOS configuration, and several appendices with driver installation, BIOS update instructions, and optional Ghost utility guides.

What's inside

Introduction
Mainboard Form‑Factor
I/O Shield Connector
Power‑On/Off (Remote)
System Block Diagram
BIOS Setup
Appendix

Specifications

Supported processor socket	Socket 370
Supported CPU speeds	100 MHz / 133 MHz
Memory type	PC133
Form factor	Micro ATX
Power connector	20‑pin ATX

Frequently asked questions

What type of power connector does the board use?

The board uses a single 20‑pin ATX power connector.

What form factor is the mainboard?

It follows the Micro ATX form factor.

Which memory modules are supported?

The board supports PC133 memory modules.

Which processor socket is required?

A Socket 370 processor is required.
