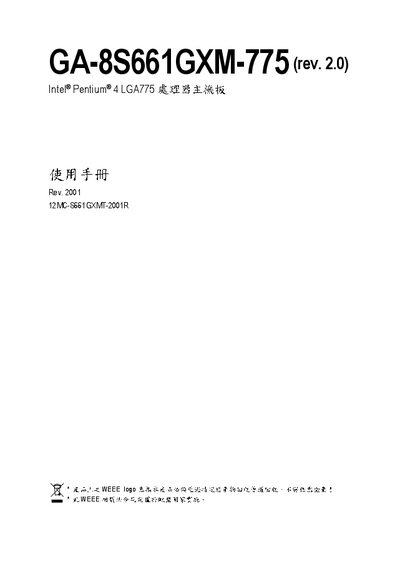

This document describes the features and characteristics of the GA-8S661GXM-775(rev. 2.0) motherboard, including support for Intel® Pentium® 4 LGA775 processors, standard CMOS features, advanced BIOS features, integrated peripherals, power management setup, etc.
This manual provides step‑by‑step hardware installation instructions for the GA‑8S661GXM‑775 motherboard, including CPU mounting, cooling, and connector placement. It also details BIOS configuration options, driver installation procedures, and system utilities.
Additional sections cover troubleshooting tips, specifications of the board’s chipset, memory and I/O features, and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Chipset | SiS 661GX |
| Memory Type | DDR RAM |
| SATA Ports | 2 Serial ATA |
The model number is GA‑8S661GXM‑775 rev. 2.0.
