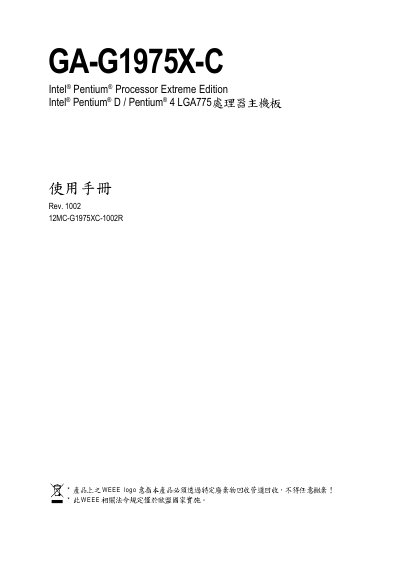

This manual covers the Gigabyte GA-G1975X-C motherboard, detailing its features, installation procedures, and BIOS configuration options. It is intended for system builders and end‑users who need to set up the board with supported Intel LGA775 processors.
The document includes sections on standard CMOS features, advanced BIOS settings, integrated peripherals, power management, PCI/PNP configuration, PC health status, and troubleshooting. It also provides specifications for memory, storage, audio, and expansion slots, as well as warranty and service contact information.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel 975X |
| Memory type | DDR2 DIMM up to 8 GB |
| SATA ports | 4 SATA 3 Gb/s (RAID 0, 1, 0+1, 5) |
| Expansion slots | 2 PCI Express x16, 2 PCI Express x4 |
The board supports Intel LGA775 processors, including Extreme Edition, Pentium D, and Pentium 4 CPUs.
It accepts up to four DDR2 DIMM modules for a maximum of 8 GB, with supported speeds of 888 MHz, 667 MHz, and 533 MHz.
The motherboard provides four SATA 3 Gb/s ports and supports RAID 0, RAID 1, RAID 0+1, and RAID 5 configurations.
It includes a Creative CA0106 audio codec with 2/4/5.1/6.1/7.1 channel output and supports SPDIF and IEEE1394 connections.
