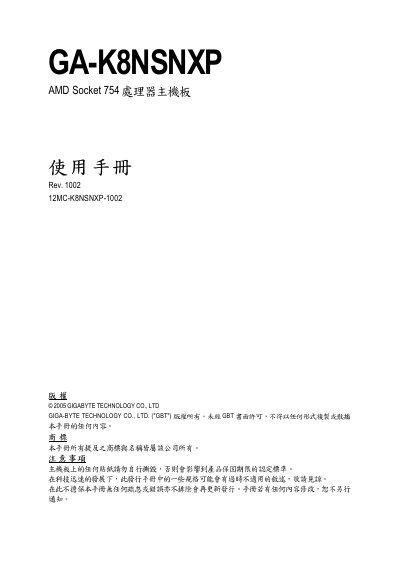

Gigabyte GA-K8NSNXP Motherboard User Manual

GA-K8NSNXP is a motherboard produced by GIGABYTE TECHNOLOGY CO., LTD, supporting AMD Socket 754, equipped with AMD Athlon TM 64 K8 Socket 754 CPU and nVIDIA® nForce TM 3 250 chipset, supports DDR400/333/266 DIMM memory, supports AGP 8X/4X(1.5V) graphics card slot, and has 5 PCI slots, 2 IDE slots, 4 SATA slots, 1 COM port, 2 USB 2.0/1.1 ports, 3 IEEE1394b ports, 1 PS/2 mouse port, 1 PS/2 keyboard port

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 96
File format: PDF
File size: 10.6 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: D025F44CC5A89E6AE3B3E712F560661F
PDF: Gigabyte GA-K8NSNXP Motherboard User Manual PDF

About this manual

This manual covers the GA‑K8NSNXP motherboard, detailing its hardware layout, supported CPUs, memory types, expansion slots, and integrated peripherals. It includes sections on BIOS configuration, RAID options, and troubleshooting.

The document also provides wiring diagrams, connector pin‑outs, and contact information for Gigabyte technical support worldwide. It serves as a reference for system builders and technicians installing or servicing the board.

What's inside

Product Overview
Motherboard Layout
CPU and Memory
Expansion Slots
BIOS and CMOS Settings
RAID and Storage
Audio and USB
Network Interfaces
Technical Support

Specifications

CPU Socket	AMD Socket 754
Chipset	nVIDIA® nForce™ 3 250
AGP Slot	AGP 4X/8X (1.5 V)
Audio Codec	ALC850 CODEC
USB Ports	8 USB 2.0/1.1 ports

Frequently asked questions

What CPU socket does the GA‑K8NSNXP motherboard use?

It uses an AMD Socket 754.

Which chipset is integrated on the GA‑K8NSNXP motherboard?

The board is equipped with the nVIDIA® nForce™ 3 250 chipset.

How many USB ports are provided on the GA‑K8NSNXP?

The motherboard provides eight USB 2.0/1.1 ports.
