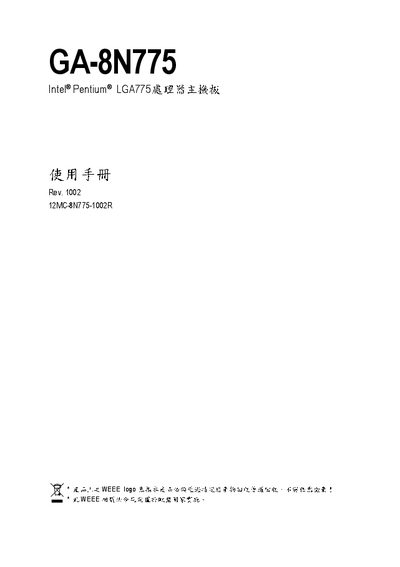

Gigabyte GA-8N775 Motherboard User Manual

GA-8N775 is a motherboard produced by Gigabyte that supports Intel Pentium processors with LGA775 sockets.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 88
File format: PDF
File size: 8.2 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: 923F2CA184A17E70A34D262A23EF37C2
PDF: Gigabyte GA-8N775 Motherboard User Manual PDF

About this manual

This manual guides users through installing the GA-8N775 motherboard, including CPU, memory, and peripheral connections. It also covers BIOS configuration, power management, and advanced features such as EasyTune and Xpress Recovery.

Additional sections describe driver installation, unique functions, and a troubleshooting guide to help resolve common issues. Contact information for Gigabyte technical support worldwide is provided at the end of the document. This manual is written in Chinese.

What's inside

Hardware Installation
Installation Before Use
Product Specifications
BIOS Setup
Driver Installation
Unique Features
Troubleshooting

Specifications

CPU Socket	LGA775
Supported CPU Clock	1066/800/533 MHz
SATA Interface	SATA 3 Gb/s
LAN Controller	Marvell 88E1111

Frequently asked questions

What CPU socket does the GA-8N775 motherboard use?

The GA-8N775 motherboard uses an LGA775 socket.

Which LAN controller is integrated on the GA-8N775?

It includes a Marvell 88E1111 Ethernet controller.

What is the maximum SATA speed supported?

The motherboard supports SATA at up to 3 Gb/s.
