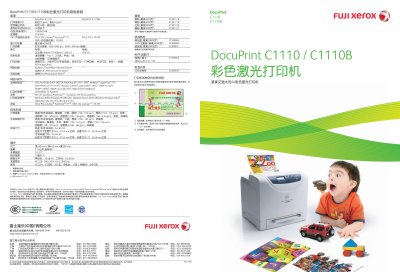

This document details the technical specifications, paper handling options, and network features of the DocuPrint C1110/C1110B. It also includes installation guidance, driver information, and maintenance tips for reliable daily use.
Key functions include fast color printing (12 ppm), high‑resolution output (up to 9600 × 600 dpi), Ethernet and USB connectivity, and security features such as secure print and user authentication. This manual is written in Chinese.
| Print speed (color / black) | 12 ppm / 16 ppm |
|---|---|
| Processor | 333 MHz |
| Memory (standard / maximum) | 128 MB / 640 MB |
| Interface | Ethernet 100Base‑TX/10Base‑T, USB 2.0 |
| Power consumption (printing / standby / sleep) | 265 W / 42 W / <5 W |
| Dimensions (W × D × H) | 400 mm × 445 mm × 389 mm |
| Weight | 17 kg (including consumables) |
| Noise level (idle / working) | 26 dB(A) / 55 dB(A) |
| Maximum monthly print volume | 40 000 pages |
The printer outputs color at 12 pages per minute and black‑white at 16 pages per minute.
It includes a built‑in Ethernet 100Base‑TX/10Base‑T port and a USB 2.0 port for direct connection.
The unit runs on AC 220‑240 V and consumes 265 W while printing, 42 W in standby, and less than 5 W in sleep mode.
Paper trays accept A4, B5, A5 and media from 60 gsm to 216 gsm, including plain, coated, thick, label, and envelope paper.
