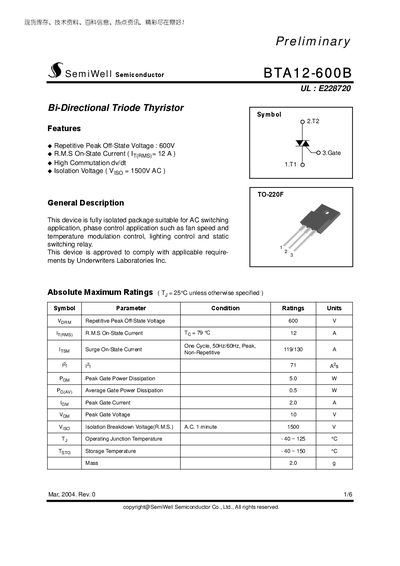

BTA12-600B is a fully isolated package bidirectional triode thyristor suitable for AC switching application, phase control application.
The BTA12-600B is a fully isolated bi‑directional triode thyristor designed for AC switching, phase‑control, fan speed, temperature modulation, lighting control and static switching relay applications. It complies with UL requirements and operates from –40 °C to 125 °C junction temperature.
Key electrical ratings include a 600 V repetitive peak off‑state voltage, 12 A RMS on‑state current, 1500 V AC isolation voltage and a 5 W peak gate power dissipation. The device is supplied in a TO‑220F package with detailed mechanical dimensions provided for each lead and the overall case.
| Repetitive Peak Off-State Voltage | 600 V |
|---|---|
| RMS On-State Current | 12 A |
| Isolation Voltage | 1500 V AC |
| Gate Trigger Voltage | 6 V |
| Package Type | TO-220F |
| Lead A Length | 10.4 mm |
The device is rated for a 600 V repetitive peak off‑state voltage.
It can carry up to 12 A RMS on‑state current.
The isolation breakdown voltage is rated at 1500 V AC.
The thyristor is supplied in a TO‑220F package.
