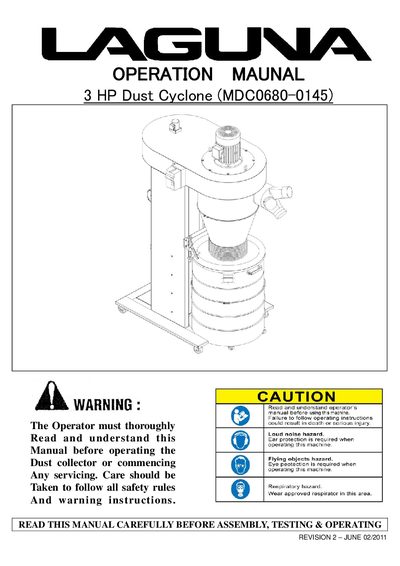

This operation manual mainly introduces the operation method and precautions of 3HP Dust Cyclone.
This manual outlines important safety rules for operating the Laguna dust cyclone, including the use of ear protection, eye protection, and respirators, as well as grounding requirements and warnings about electrical shock and fire hazards.
It also details unpacking, hardware components, assembly instructions, an exploded diagram, technical specifications such as motor power and suction capacity, and a complete parts list for service and replacement.
| Motor Power | 3 HP |
|---|---|
| Voltage | 220 V |
| Frequency | 60 Hz |
| Current | 18 A |
| Motor Speed | 3450 RPM |
| Suction Capacity | 2300 CEM |
| Static Pressure | 16.2 in H2O |
| Impeller Size | 15.8" |
| Inlet Size | 8" |
| Overall Dimensions | 1200 x 880 x 2150 mm |
| Net Weight (Box 1) | 139 kg |
| Gross Weight (Box 1) | 158 kg |
No. It is intended for wood material only and must not be used to pick up metal shavings, water, or any flammable liquids.
The motor runs at 3450 RPM.
