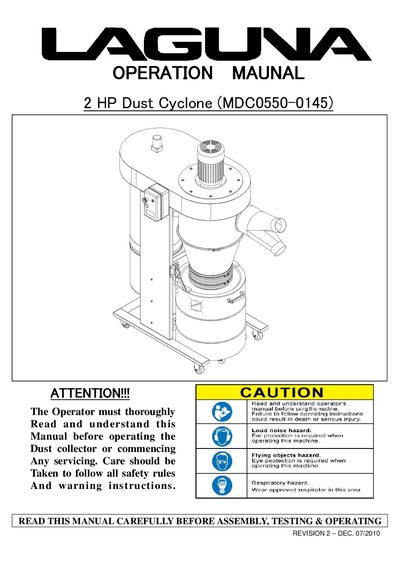

This document introduces the operation method of 2 HP Dust Cyclone (MDC0550-0145), including safety precautions, power grounding, specifications, package contents, assembly instructions, exploded diagram and parts list.
This manual outlines important safety rules for operating the 2 HP dust cyclone, including required eye protection, hearing protection, and respirators, as well as grounding instructions and warnings about electrical shock and fire hazards. It also describes proper handling, assembly, and maintenance procedures to ensure safe and reliable use.
The document lists the machine’s technical specifications such as motor power, suction capacity, and dimensions, and provides a complete parts list with part numbers and quantities for assembly, replacement, and service.
| Motor | 2HP / 1 Phase |
|---|---|
| Current | 12.1 A |
| Motor Speed | 3450 RPM |
| Suction Capacity | 1700 CFM |
| Static Pressure | 14.8 Inch H2O |
| Impeller Size | 14.5" |
| Inlet Size | 8" |
| Switch Type | Magnetic Switch |
| Overall Dimensions | 1000 x 670 x 1700 mm |
| Weight | 100 KGS |
The dust cyclone provides a suction capacity of 1700 CFM.
The unit measures 1000 mm × 670 mm × 1700 mm.
