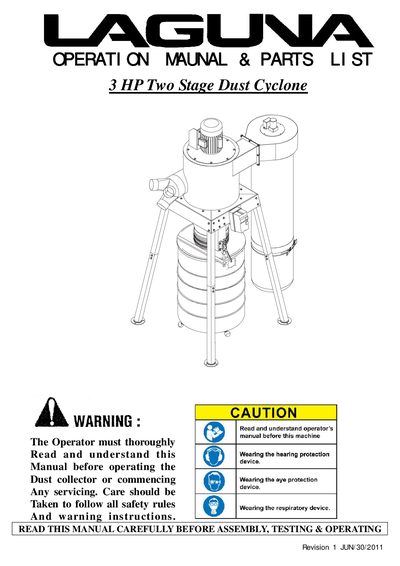

This document is the operation manual and parts list for the 3 HP Two Stage Dust Cyclone. The operator must read and understand this manual before operating the dust collector or commencing any servicing, and follow all safety rules and warning instructions. The manual also provides assembly instructions and an exploded diagram.
This manual covers important safety rules, grounding instructions, and proper operation of the Laguna 3 HP Two Stage Dust Cyclone. It includes detailed specifications, unpacking checklists, hardware package details, and a complete parts list.
Operators are instructed to wear hearing, eye, and respiratory protection, follow grounding requirements, and only use the unit for wood material pickup. The document also provides assembly guidance and exploded diagrams for service technicians.
| Motor Power | 3 HP |
|---|---|
| Voltage | 220 V |
| Current | 12.3 A |
| Motor Speed | 3450 RPM |
| Suction Capacity | 2100 CFM |
| Static Pressure | 13 in H2O |
| Impeller Size | 15" |
| Inlet Size | 8" |
| Overall Dimensions | 1700 x 1150 x 2300 mm |
The suction capacity is 2100 CFM.
The motor runs at 3450 RPM.
