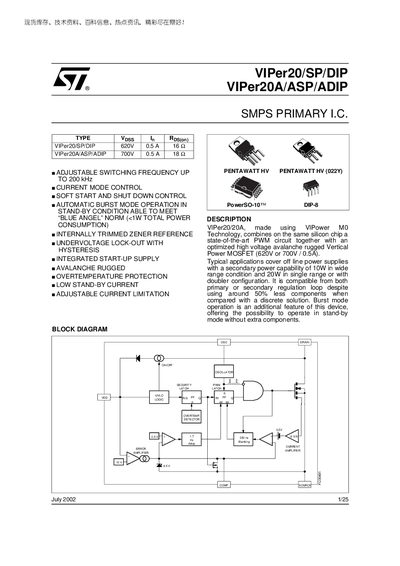

VIPer20/20A, made using VIPower M0 Technology, combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized high voltage avalanche rugged Vertical Power MOSFET (620V or 700V / 0.5A). Typical applications cover off line power supplies with a secondary power capability of 10W in wide range condition and 20W in single range or with doubler configuration. It is compatible from both primary or secondary regulation loop despite using around 50% less components when compared with a discrete solution. Burst mode operation is an additional feature of this device, offering the possibility to operate in stand-by mode without extra components.
The ViPer20/SP/DIP and VIPer20A/ASP/ADIP are high‑voltage switching regulators that integrate a PWM controller with a rugged avalanche‑rated vertical power MOSFET (620 V or 700 V, 0.5 A). They feature adjustable switching frequency up to 200 kHz, current‑mode control, soft‑start, burst‑mode standby operation and built‑in protections such as undervoltage lock‑out, over‑temperature shutdown and adjustable current limitation.
The document provides absolute maximum ratings, electrical characteristics, pin descriptions, ordering numbers and thermal data. It also includes typical application notes, oscillator and error‑amplifier settings, and mechanical dimensions for the DIP‑8 package.
| Drain‑Source Voltage (Vds) | 620 V (ViPer20/SP/DIP) / 700 V (VIPer20A/ASP/ADIP) |
|---|---|
| Maximum Continuous Current (Ib) | 2 mA (internally limited) |
| Power Dissipation at 25 °C | 57 W |
| Thermal Resistance Junction‑Case | 2.0 °C/W |
Yes, it features an undervoltage lock‑out with hysteresis.
Both devices are supplied in a DIP‑8 package (PowerSO‑10™ DIP‑8).
