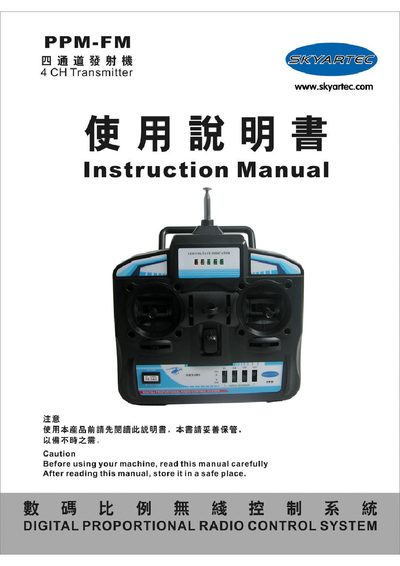

This manual covers the meaning of special markings, safety precautions during flight, and detailed descriptions of each part of the PPM-FM transmitter. It explains how to install the antenna, charge the Ni‑MH battery, and perform assembly and adjustment procedures before use.
The document also includes operating instructions for the transmitter’s servos, trim adjustments, and troubleshooting tips, as well as a glossary of terms and contact information for SkyArtec support.
| Channels | 4 channels |
|---|---|
| Frequency band | 35 MHz, 40 MHz, 72 MHz |
| Power source | 1.5 V × 8 AA batteries |
| Program type | PPM |
| Modulation type | FM |
| RF power | < 1 mW |
| Static current | < 180 mA |
| Servo reverser | Yes |
| Low voltage warning | Yes |
| Dimensions | 187 mm × 112 mm × 215 mm |
| Weight | 561 g |
| Antenna length | 957 mm |
| Use range | Airplane, glider |
Press the part marked PUSH and slide the battery cover downward to access the battery compartment.
