LM358 is a dual operational amplifier with low power drain, single supply or split supply operation, etc.

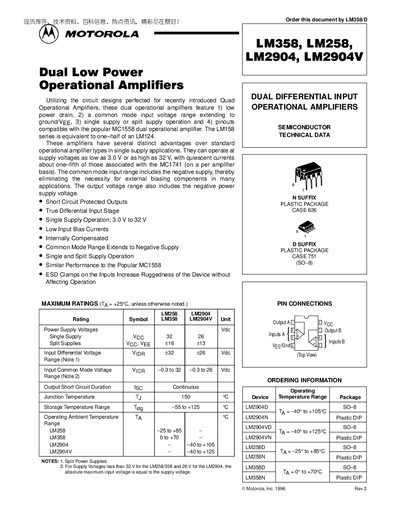

This Motorola datasheet describes the LM358, LM258, LM2904 and LM2904V dual low‑power operational amplifiers. It highlights features such as low quiescent current, single‑supply operation from 3 V to 32 V, input common‑mode range extending to the negative supply, and pin compatibility with the MC1558.
The document includes maximum ratings, detailed electrical characteristics, package information for N‑suffix (plastic case 626) and D‑suffix (plastic SO‑8 case 751), outline dimensions, and ordering codes. It also contains a disclaimer and contact information for Motorola literature distribution.
| Supply Voltage Range (Single Supply) | 3.0 V to 32 V |
|---|
The LM358 can operate from a single supply voltage of 3.0 V up to 32 V.
