ADE7763 is a single-phase active and apparent energy metering IC, supporting IEC 61036/60687, IEC62053-21, IEC62053-22 standards, with high accuracy, on-chip digital integrator, current channel PGA, sampled waveform, current and voltage RMS and other features.
The ADE7763 is a single‑phase active and apparent energy metering IC that provides high‑accuracy measurements, on‑chip digital integration for di/dt current sensors, and a programmable PGA for direct connection to shunts or current transformers. It supports IEC energy‑metering standards and offers programmable thresholds for voltage sag and surge detection.

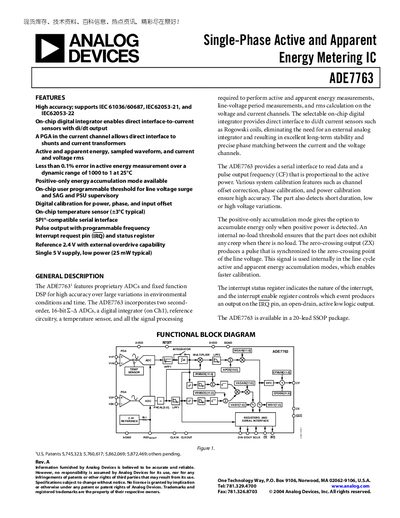

This document includes a feature overview, detailed specifications, absolute maximum ratings, pin configuration, timing characteristics, serial interface description, register maps, and safety notes such as ESD precautions. It is intended for designers integrating the ADE7763 into energy‑metering applications.
| Active Power Measurement Bandwidth | 14 kHz |
|---|---|
| IRMS Measurement Error | 0.5 % typ |
| VRMS Measurement Error | 0.5 % typ |
| Operating Temperature Range | -40 °C to +85 °C |
The ADE7763 is rated for industrial operation from –40 °C to +85 °C.
The active power measurement bandwidth is 14 kHz.
