This is a manual for a raster engraving machine.

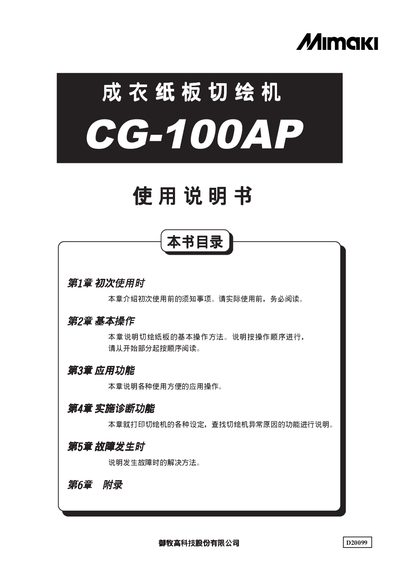

This user manual covers everything needed to install and operate the Mimaki C6‑100AP cutting plotter. It begins with safety warnings, unpacking, assembly, and placement guidelines, followed by detailed instructions for connecting power, RS‑232C and parallel interfaces, and loading paper.
Later sections describe basic cutting and plotting procedures, tool settings, application functions, diagnostic features, and a comprehensive troubleshooting guide. An appendix supplies interface specifications, machine specifications, tool condition tables, and ordering information for accessories. This manual is written in Chinese.
Wait at least 30 seconds before turning the power back on.
