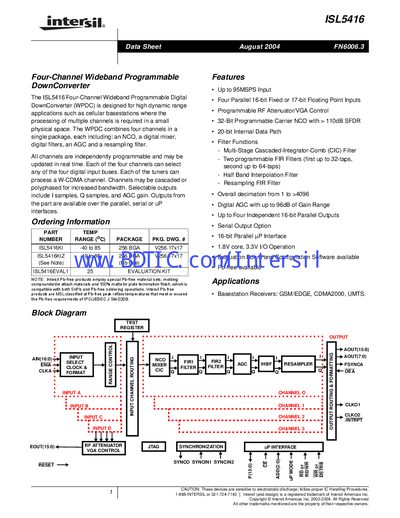

The ISL5416 is a four-channel wideband programmable digital downconverter designed for high dynamic range applications such as cellular basestations where the processing of multiple channels is required in a small physical space.
The ISL5416 is a four‑channel digital receiver IC offering a wide dynamic range and flexible programmable features. Each channel includes a front‑end NCO, digital mixer, CIC filter, two FIR filters, AGC, half‑band interpolation and resampling filters. All channels share a common processing clock and support both fixed‑point and floating‑point parallel data inputs.
The document provides full pin descriptions, microprocessor interface details, synchronization options, and package information for the 256‑lead BGA device. Electrical specifications such as supply voltages, maximum clock rate, temperature range and gain control are also listed.
| Operating temperature range | -40°C to 85°C |
|---|---|
| Core supply voltage | 1.8V (+0.09V) |
| I/O supply voltage | 3.3V (+0.165V) |
| Maximum clock rate | 95 MSPS |
| Package type | 256‑lead BGA, V256.17x17 |
| Number of channels | 4 |
| NCO SFDR | >110 dB |
| AGC gain range | up to 96 dB |
| Parallel data input buses | Four 17‑bit buses (Ain, Bin, Cin, Din) |
The core supply voltage is 1.8 V with a tolerance of ±0.09 V.
It provides four 17‑bit parallel data input buses: Ain, Bin, Cin, and Din.
The device operates from –40 °C to 85 °C.
It supports a maximum clock rate of 95 MSPS.
