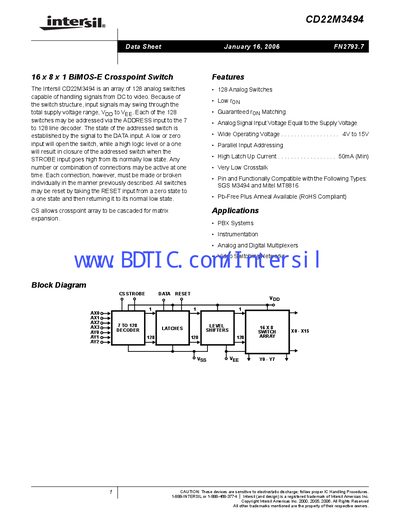

This document introduces the features and characteristics of Intersil CD22M3494 16 x 8 x 1 BiMOS-E Crosspoint Switch.
The CD22M3494 is a 16 × 8 × 1 BiIMOS‑E crosspoint switch offering 128 individually addressable analog switches. It supports signal levels from DC up to video and can handle the full supply voltage range.
The device includes features such as low ON resistance, guaranteed resistance matching, high latch‑up current (50 mA min), and RoHS‑compliant Pb‑free options. It is supplied in PDIP and PLCC packages and is pin‑compatible with SGS M3494 and Mitel MT8816 devices.
| Number of analog switches | 128 |
|---|---|
| High latch‑up current (min) | 50 mA |
| Operating voltage range | AV to 15 V |
| Maximum junction temperature (plastic package) | 150 °C |
| Maximum storage temperature range | -65 °C to 150 °C |
The CD22M3494 contains 128 analog switches.
The high latch‑up current is specified as 50 mA minimum.
The device operates from AV up to 15 V.
The maximum junction temperature is 150 °C.
