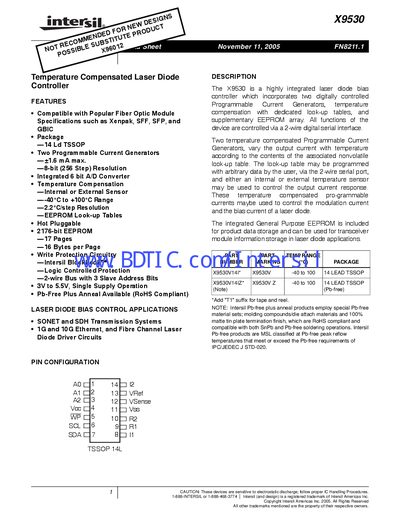

The X9530 is a highly integrated laser diode bias controller which incorporates two digitally controlled Programmable Current Generators, temperature compensation with dedicated look-up tables, and supplementary EEPROM array. All functions of the device are controlled via a 2-wire digital serial interface.
The X9530 combines two programmable current generators, an integrated 6‑bit A/D converter, temperature compensation and a 2176‑bit EEPROM in a 14‑lead TSSOP package. All functions are accessed through a 2‑wire digital serial interface, allowing external or internal temperature sensing.
Key features include a maximum output current of +1.6 mA per generator, 8‑bit (256‑step) resolution, temperature range from –40 °C to +100 °C with 2.2 °C/step resolution, and block‑lock protected EEPROM for storing module data or custom lookup tables.
| Maximum Output Current | +1.6 mA |
|---|---|
| Current Resolution | 8‑bit (256 steps) |
| A/D Converter | Integrated 6‑bit |
| Temperature Compensation Range | -40 °C to +100 °C |
| Temperature Resolution | 2.2 °C/step |
| EEPROM Size | 2176 bits (272 × 8) |
| Supply Voltage | 3 V to 5.5 V |
Each programmable current generator can source up to +1.6 mA.
The device compensates over a temperature range of –40 °C to +100 °C.
