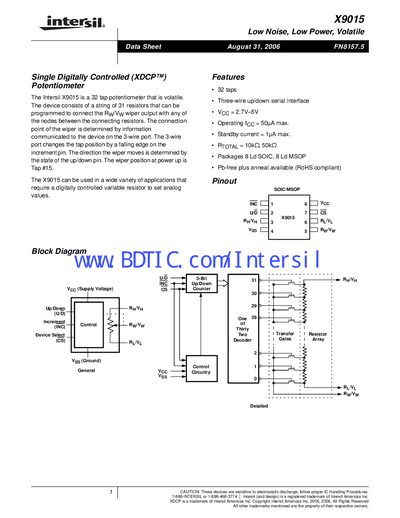

This document introduces Intersil X9015, a 32 tap programmable single stable digital potentiometer.
The X9015 is a 32‑tap digitally controlled potentiometer (XDCP™) that uses a three‑wire serial interface to set the wiper position. It offers low noise, low power operation and a standby current of up to 1 A max. The device includes up/down control, increment input, and chip‑select signals, and retains the wiper position only while powered.
The part is offered in 8‑lead SOIC and 8‑lead MSOP packages. The datasheet lists absolute maximum ratings, detailed DC and AC electrical specifications, performance curves, and mechanical dimensions for both package types.
| Number of taps | 32 |
|---|---|
| Supply voltage (Voc) | 2.7 V – 5 V |
| Standby current | 1 A max |
| End‑to‑end resistance (RTOTAL) | 10 kΩ, 50 kΩ |
| Wiper resistance at 5 V | 200 Ω |
| Resolution | 3 % |
| Package types | 8‑lead SOIC, 8‑lead MSOP |
The X9015 provides 32 taps.
The standby current is specified as up to 1 A max.
The device is offered in 8‑lead SOIC and 8‑lead MSOP packages.
When power is restored, the wiper defaults to Tap #15.
