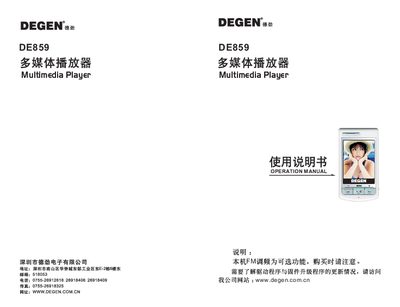

This is a user manual for a DEGEN DE859 multimedia player.
This manual describes the DEGEN DE859 multimedia player, covering its hardware layout, power source, and basic operation such as turning the device on/off, navigating menus, and playing audio, video, images, and e‑books. It also explains advanced functions like A‑B repeat, playback speed adjustment, and FM radio reception.
Additional sections provide detailed specifications, battery handling guidelines, formatting procedures, and a troubleshooting guide that addresses common issues such as unexpected shutdowns, no sound, and USB connection problems. This manual is written in Chinese.
| Internal Memory | 128M/256M/512M/1G |
|---|---|
| Display | 1.8 inch full‑color |
| Recording Format | WAV, ACT |
| Video Format | AMV, MTV |
| Image Format | JPEG |
| FM Radio | 76‑108 MHz |
| Maximum Recording Time | ≈35 hours (ACT, 128M) |
| Battery Life (music playback) | ≈5 hours |
| Earphone Output Power | 10 mW × 2 |
| USB Standard | USB 2.0 |
| MP3/WMA Bitrate | 8‑320 Kbps / 5‑384 Kbps |
| Battery | Lithium‑polymer 300 mAh |
| Weight | ≈42 g (incl. battery) |
| Dimensions | 72 × 39 × 12 mm |
Connect the player to a computer, run the provided formatting tool, select “Format” and click “Start”, or use the Windows format utility with FAT file system.
The auto‑power‑off time may be set too short or the battery may be critically low; adjust the power‑off setting and ensure the battery is sufficiently charged.
Visit the company website at www.degen.com.cn to obtain the latest driver and firmware upgrade program.
The player supports standard MP3 and WMA files; non‑standard formats are not supported.
