The instruction manual introduces the use of VIEWCAM, including basic operations, preview, recording, advanced features, and provides a method for removing the battery.

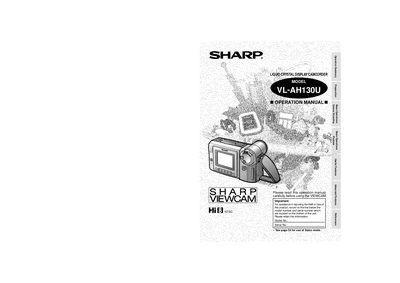

This operation manual guides users of the Sharp VIEWCAM VL-AH130U camcorder through basic setup, battery handling, and recording functions. It includes safety precautions, warranty details, and a full table of contents covering everything from power sources to playback.
The manual also lists technical specifications, optional accessories, and service information for U.S. customers, ensuring proper use and maintenance of the camcorder in various environments.
| Recording System | NTSC standard |
|---|---|
| Recording/Playback Time | 120 minutes (P6-120) |
| Power Requirement | DC 3.6 V (battery) / DC 7.0 V (adapter) |
| Power Consumption | 5.1 W (full auto mode, zoom off) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions | 183 mm W × 109 mm H × 99 mm D |
| Weight | 1.57 lb (710 g) without battery pack |
It can be powered from the supplied AC adapter (7 V DC output) or from the battery pack (3.6 V DC output).
The camcorder operates safely between 0 °C and 40 °C (32 °F to 104 °F).
