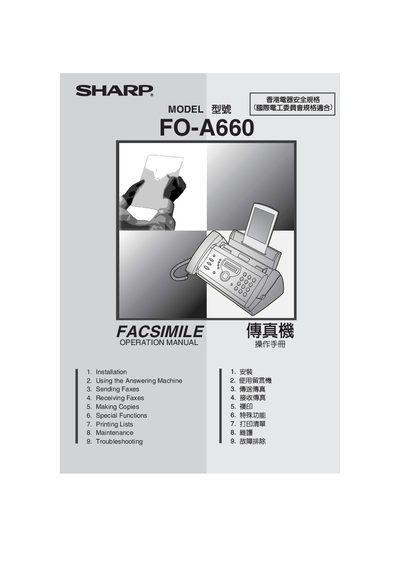

This document is the operation manual of Sharp FO-A660 facsimile.
This manual covers the installation of the Sharp FO‑A660 fax, how to use its answering‑machine functions, sending and receiving faxes, making copies, special functions such as caller ID and duplex ringing, printing lists, routine maintenance, and troubleshooting procedures.
It also lists the technical specifications of the device, including memory size, modem speed, resolution options, paper capacity, power consumption, dimensions, and environmental limits.
| Memory size | 448 KB (≈24 pages) |
|---|---|
| Modem speed | 14,400 bps (fallback to lower speeds) |
| Transmission time (ECM on) | ≈6 seconds |
| Resolution (horizontal) | 8 pels/mm |
| Resolution (vertical, standard) | 3.85 lines/mm |
| Resolution (vertical, fine/halftone) | 7.7 lines/mm |
| Resolution (vertical, super fine) | 15.4 lines/mm |
| Paper tray capacity | 10 A4 pages (80 g/m²) |
| Power consumption (standby) | 2.5 W |
| Power consumption (maximum) | 110 W |
| Dimensions (W × D × H) | 327 mm × 193 mm × 163 mm |
| Weight | ≈2.8 kg |
| Power requirements | 220‑240 V AC, 50/60 Hz |
| Relative humidity | 25 % – 85 % RH |
It has 448 KB of memory, which holds about 24 average pages or 20 minutes of voice messages.
The standby power consumption is 2.5 W.
The tray can hold up to 10 A4 pages of 80 g/m² paper.
It measures 327 mm × 193 mm × 163 mm and weighs about 2.8 kg.
