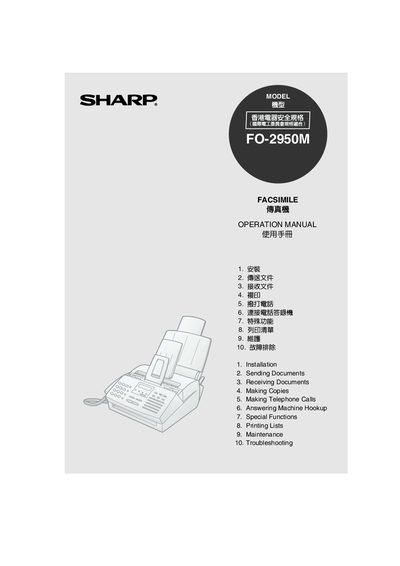

This document is the operation manual for Sharp facsimile model FO-2950M. The manual includes instructions on installation, sending documents, receiving documents, making copies, making telephone calls, hookup with answering machine, special functions, printing lists, maintenance, and troubleshooting.
This manual covers all aspects of using the Sharp FO-2950M fax machine, including installation, sending and receiving faxes, making copies, telephone call functions, and special features such as broadcasting and batch page numbering. Detailed safety information and wiring instructions are also included.
Technical specifications, cartridge replacement procedures, power requirements, and troubleshooting guides are provided to help users maintain reliable operation and resolve common issues.
| Memory size | 2 MB (approx. 130 pages) |
|---|---|
| Modem speed | 14,400 bps (max.) |
| Transmission time | Approx. 6 seconds |
| Toner cartridge yield (starter) | Approx. 1,875 pages |
| Toner cartridge yield (replacement) | Approx. 3,750 pages |
| Drum cartridge yield (starter) | 20,000 pages (ave.) |
| Horizontal resolution | 8 pels/mm |
| Fine/halftone resolution | 7.7 lines/mm |
| Super fine resolution | 15.4 lines/mm |
| PC scanning resolution | 600 dpi (enhanced) |
| PC printing resolution | 600 dpi (enhanced 1,800 dpi) |
| Paper tray capacity | 200 sheets (A4, 80 g/m²) |
| Automatic document feeder capacity | 20 pages max |
| Power consumption (standby) | 9.0 W |
| Power consumption (maximum) | 840 W |
| Power requirements | 220‑240 V AC, 50/60 Hz |
| Operating humidity | 20 % – 85 % RH |
| Dimensions (W×D×H) | 386 mm × 398 mm × 169 mm |
| Weight | Approx. 6.3 kg |
The automatic document feeder can hold up to 20 pages.
It requires 220‑240 V AC at 50/60 Hz.
Standby power consumption is 9.0 W.
The paper tray can hold up to 200 sheets of A4 paper (80 g/m²).
