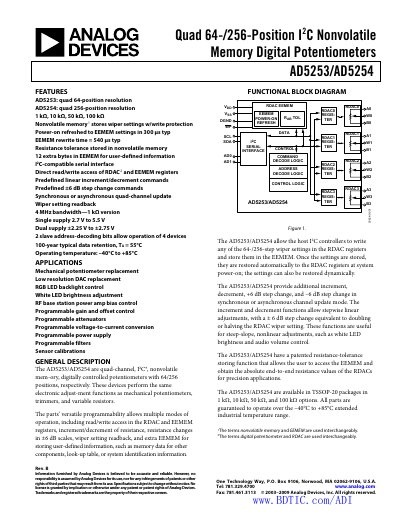

This document mainly introduces the features and characteristics of AD5253/AD5254 quad channel 64/256 bit I2C non-volatile memory digital potentiometers.
The AD5253 and AD5254 are quad‑channel I²C digital potentiometers offering 64‑position (AD5253) or 256‑position (AD5254) resolution. They provide non‑volatile memory for wiper settings, programmable increment/decrement commands, and +6 dB step changes, making them suitable for LED brightness control, gain/offset adjustment, and sensor calibration.
The devices operate from a single 2.7 V‑5.5 V supply or dual supplies (+2.25 V to +2.75 V) and are rated for an industrial temperature range of –40 °C to +85 °C. Data is retained for up to 100 years at 55 °C, and the parts are available in 1 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ resistance options.
| Resolution (AD5253) | 6 Bits |
|---|---|
| Operating Temperature | –40 °C to +85 °C |
| Data Retention | 100 years (typical at 55 °C) |
The AD5253 provides 64 programmable wiper positions.
The non‑volatile memory retains data for about 100 years at 55 °C.
They are rated for –40 °C to +85 °C.
