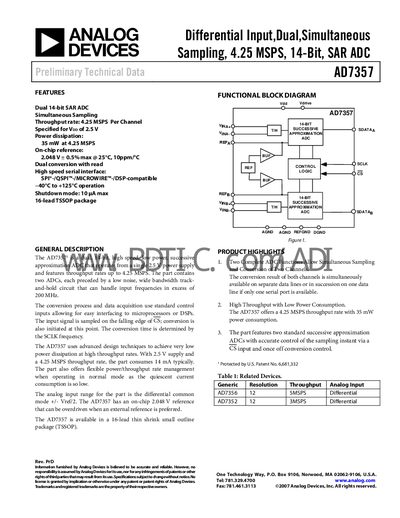

AD7357 is a dual-channel 14-bit SAR ADC that features differential input, dual simultaneous sampling, and a throughput rate of 4.25 MSPS. It has low power dissipation, an on-chip reference voltage, and a high-speed serial interface.
The AD7357 from Analog Devices is a dual 14‑bit successive‑approximation SAR ADC with simultaneous sampling. It operates from a 2.5 V supply, provides an on‑chip 2.048 V reference, and is available in a 16‑lead TSSOP package.
The device delivers a maximum throughput of 4.25 MSPS per channel while consuming only 35 mW in normal mode. It supports a wide input bandwidth of 200 MHz and operates over a temperature range of –40 °C to +125 °C (Y grade).
| Resolution | 14 bits |
|---|---|
| Throughput Rate | 4.25 MSPS max |
| Power Dissipation (Normal Mode) | 35 mW typ |
| Supply Voltage (Vop) | 2.5 V ±10 % |
| On‑chip Reference Voltage | 2.048 V ±0.5 % @25 °C |
| Full Power Bandwidth | 200 MHz typ @3 dB |
| Operating Temperature (Y Grade) | –40 °C to +125 °C |
| Package | 16‑lead TSSOP |
The AD7357 can achieve a maximum throughput of 4.25 MSPS per channel.
In normal (operational) mode the device dissipates about 35 mW.
The AD7357 is supplied in a 16‑lead thin‑shrink small outline (TSSOP) package.
The on‑chip reference voltage is 2.048 V with a tolerance of ±0.5 % at 25 °C.
