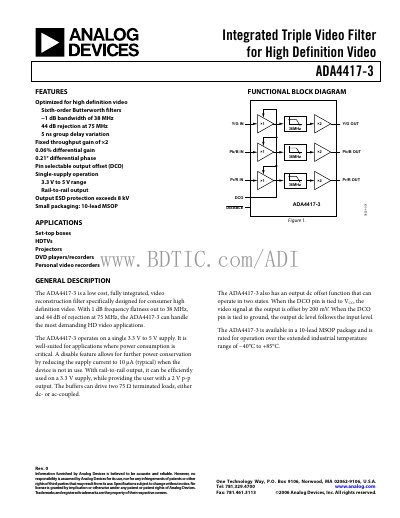

The ADA4417-3 is a low cost, fully integrated, video reconstruction filter specifically designed for consumer high definition video applications.
The ADA4417-3 is a low‑cost, fully integrated video reconstruction filter designed for consumer high‑definition video applications. It operates from a single 3.3 V to 5 V supply and offers rail‑to‑rail output, a fixed gain of ×2, and a disable mode for ultra‑low power consumption.
The document provides detailed specifications, absolute maximum ratings, thermal resistance data, pin configuration, typical performance curves, and ordering information for the 10‑lead MSOP package.
| 1 dB Bandwidth | 38 MHz |
|---|---|
| 3 dB Bandwidth | 42 MHz |
| Out‑of‑Band Rejection (75 MHz) | 44 dB |
| Supply Voltage Range | 3.3 V to 5.0 V |
| Quiescent Current (DCO = 0) | 19.5 mA (typical) |
| Group Delay Variation | 5 ns |
| Package Type | 10‑lead MSOP |
| ESD Protection | Exceeds 8 kV |
It operates from 3.3 V to 5.0 V.
The 1 dB bandwidth is 38 MHz.
It is available in a 10‑lead MSOP package.
The output ESD protection exceeds 8 kV.
