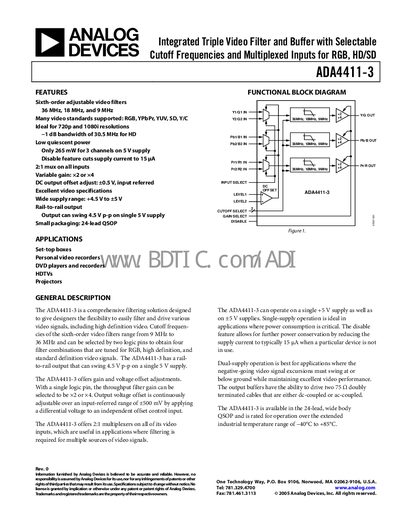

The ADA4411-3 is an integrated triple video filter and buffer with selectable cutoff frequencies and multiplexed inputs for RGB, HD/SD.
The ADA4411-3 integrates three adjustable sixth‑order video filters with selectable cutoff frequencies of 9 MHz, 18 MHz, and 36 MHz. It supports RGB, YPbPr, YUV, SD and HD video standards, provides 2:1 multiplexing on all inputs, and offers variable gain (×2 or ×4) and DC offset adjustment.
The device operates from a single 5 V supply (wide range +4.5 V to +5 V) in a 24‑lead QSOP package, delivering rail‑to‑rail output swings of up to 4.5 V p‑p. It features low quiescent power (≈55 mA) and a disable mode that reduces supply current to about 15 pA, making it suitable for power‑critical applications such as set‑top boxes, DVD players, HDTVs and projectors.
| Supply voltage range | +4.5 V to +5 V |
|---|---|
| Package type | 24‑lead QSOP |
| Quiescent current (active) | 53‑56 mA |
| Quiescent current (disabled) | 15 pA |
| Maximum supply voltage | 12 V |
| Operating temperature range | -40 °C to +85 °C |
It operates from a wide supply range of +4.5 V to +5 V.
When disabled, the supply current is reduced to about 15 pA.
The part is offered in a 24‑lead QSOP package.
The filter provides selectable cutoffs of 9 MHz, 18 MHz, and 36 MHz.
