AD8510/AD8512/AD8513 are high precision, low noise, low input bias current, wide bandwidth JFET operational amplifiers. They feature fast settling time, low offset voltage, low temperature coefficient of offset voltage, low input bias current, dual-supply operation, low noise, low distortion, etc. They can be used in instrumentation, multipole filters, precision current measurement, photodiode amplifiers, sensors, audio, and other fields.
The AD8510, AD8512 and AD8513 are precision JFET operational amplifiers offering very low offset voltage, ultra‑low input bias current, and low noise, making them suitable for high‑impedance sensor amplification, precision current measurement, photodiode amplifiers, and audio applications. They operate from +5 V to +15 V dual supplies and remain stable with capacitive loads.

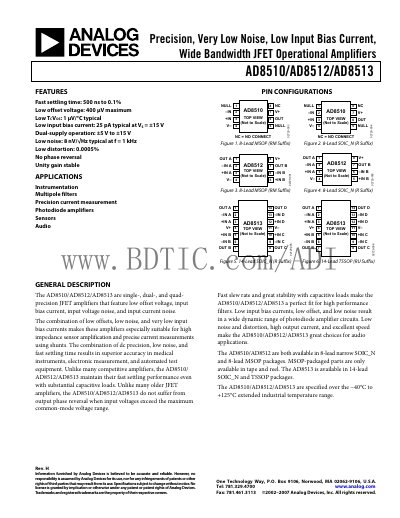

This handbook contains feature highlights, application examples, pin‑out diagrams, detailed electrical characteristics, absolute maximum ratings, typical performance curves, package dimensions, and an ordering guide for the various MSOP, SOIC_N and TSSOP package options.
| Input Bias Current (typical) | 25 pA at Vs = +15 V |
|---|---|
| Gain‑Bandwidth Product | 8 MHz |
| Operating Temperature Range | –40 °C to +125 °C |
The typical input bias current is 25 pA at a supply voltage of +15 V.
The gain‑bandwidth product is 8 MHz.
They are specified for operation from –40 °C to +125 °C.
