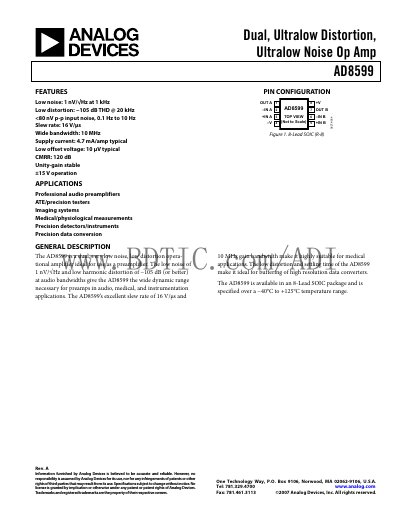

The AD8599 is a dual, very low noise, low distortion operational amplifier ideal for use as a preamplifier. Its low noise of 1 nV/√Hz and low harmonic distortion of -105 dB THD @ 20 kHz make it an ideal choice for many high-performance applications.
The AD8599 dual operational amplifier offers exceptionally low noise (1 nV/√Hz at 1 kHz) and low total harmonic distortion (‑105 dB THD at 20 kHz), making it suitable for high‑performance audio, medical and precision instrumentation. It operates from a single +15 V supply, provides a slew rate of 16 V/µs, and remains stable at unity gain.
Typical applications include professional audio preamplifiers, ATE/precision testers, imaging systems, and medical/physiological measurement equipment. The device is supplied in an 8‑lead SOIC package and is rated for operation from –40 °C to +125 °C.
| Noise density | 1 nV/√Hz at 1 kHz |
|---|---|
| Total harmonic distortion | -105 dB THD @ 20 kHz |
| Slew rate | 16 V/µs |
| Gain‑bandwidth product | 10 MHz |
| Supply current per amplifier | 4.7 mA typical |
| Input offset voltage | 10 pV typical |
| CMRR | 120 dB |
| Maximum supply voltage | +18 V |
| Operating temperature range | –40 °C to +125 °C |
The AD8599 draws about 4.7 mA per amplifier under typical conditions.
The device is rated for a maximum supply voltage of +18 V.
The op‑amp has a gain‑bandwidth product of 10 MHz.
The AD8599 provides a slew rate of 16 V/µs.
