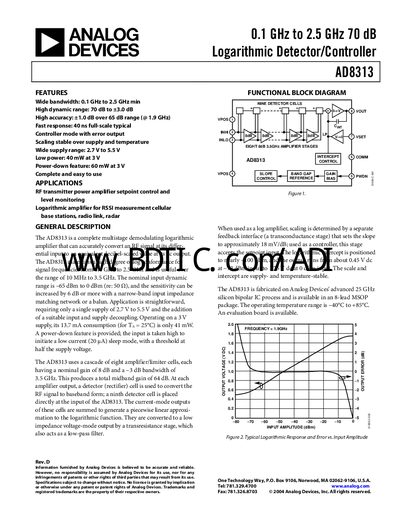

The AD8313 is a wideband, high dynamic range 70dB logarithmic detector/controller that is primarily used in RF transmitter power amplifier setpoint control and level monitoring.
The AD8313 is a multistage demodulating logarithmic amplifier that converts RF power to a linear voltage output. It operates from 0.1 GHz to 2.5 GHz, offers a 70 dB dynamic range, and can be used both as a log detector (RSSI) and as a controller with a separate set‑point interface.
The device runs on a single supply of 2.7 V to 5.5 V, drawing about 40 mW at 3 V in normal mode and 60 mW in power‑down mode. It features eight 8 dB amplifier stages, nine detector cells, and a transresistance output stage that provides a slope of roughly 18 mV/dB. An evaluation board and MSOP‑8 package are available.
| Frequency range | 0.1 GHz to 2.5 GHz |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| Active power consumption | 40 mW at 3 V |
| Power‑down consumption | 60 mW at 3 V |
| Dynamic range (+3 dB) | 70 dB |
| Response time (full‑scale) | 40 ns typical |
The AD8313 operates from 2.7 V to 5.5 V.
It covers a frequency range of 0.1 GHz to 2.5 GHz.
It consumes about 40 mW when powered from a 3 V supply.
The device provides a 70 dB dynamic range.
